Stainless Steel Rope Mesh - Woven Type

Stainless steel rope mesh is hand-woven from Material 304 or 316 stainless steel ropes by molds. It is a creative product that perfectly replaces the fences and bars used in zoological gardens, so it is called zoo mesh by clients. Stainless steel wire rope mesh for enclosure fences

JD Metal Mesh is a stainless steel wire mesh manufacturer from China, being a professional stainless steel netting supplier. Woven mesh is more robust and durable than ferrule wire mesh, Stainless steel cable mesh enclosures zoo fencing produced by JD is safety-certified, simple in structure, easy to install, beautiful in appearance, highly durable, and maintenance-freewhile at a lower price.It is widely used in zoos, safari parks, ecological parks, bird habitats, etc. Whether it is South Africa, the Middle East, or the Americas, the application of stainless steel rope mesh has been recognized by more and more experts.It can fit almost all the needs in the zoological. It can be the perimeter fence of large outdoor animal enclosures; it also can be the sky roof of the flight aviary.

The specification name of stainless steel wire mesh is composed of the wire rope diameter and the mesh aperture.

For example:

   JD1251

   Rope diameter: 1.2mm (3/64")
   Mesh aperture: 51mm × 51mm (2" × 2")

The wire rope diameter is 1.2 mm; When the opening angle of each mesh is 90°, the distance between the two parallel ropes is the standard rope diameter. Shown as the "X" in the picture. In this example, X = 51mm.

Specifications:

We use SUS304/304L/316/316L stainless steel wire ropes, which has strong corrosion resistance and tensile strength.

Wire rope diameter:

    By inch: 3/64", 1/16", 5/64", 3/32", 1/8", 5/32"
    By mm: 1.2mm, 1.6mm, 2.0mm, 2.4mm, 3.2mm, 4.0mm

The rope is made with multiple cores twisted together, the structure is: 7*7 cores (rope diameter 1.2mm, 1.6mm, 2.0mm, 2.4mm) and 7*19 cores (rope diameter 3.2mm, 4.0mm).

Mesh aperture:

    By inch: 0.6"×0.6", 0.8"×0.8", 1"×1", 1.2"×1.2", 1.5"×1.5", 2"×2", 2.4"×2.4", 3"×3", 3.6"×3.6", 4"×4", 5"×5", 6"×6".
    By mm: 15mm×15mm, 20mm×20mm, 25mm×25mm, 30mm×30mm, 38mm×38mm, 51mm×51mm, 60mm×60mm,76mm×76mm, 90mm×90mm, 102mm×102mm, 127mm×127mm, 152mm×152mm

Surface treatment: Natural color, Black color, Bronze color.

Mesh panel size: You can provide the dimensions of the mesh panel and we will produce it according to the size you provide.

The standard size is 18m (L) x 9m (H).

The large panel size is supported, depending on different specifications the largest single panel size can be reached 300m². We recommend that you provide the required size so that you don't need to cut and avoid waste during installation.

Stainless steel rope mesh the rope diameter, material and mesh size can all be customized. We will produce according to your requirements.

Gallery of Stainless steel wire rope mesh:

Features:

1. Good sight, Transparent: no sense of bondage, give the animals a free living environment, and give visitors a good view of sight.

2. Flexibility: the smooth mesh surface can get in close contact with animal’s fur and feather without damaging them and meanwhile guarantees enough tensile strength.

3. Its rust and corrosion resistant and maintenance-free features as well as ultra-long service life can provide a beautiful site and reduces the zoo’s operating costs. One-time investment provides permanent use—its comprehensive profits outperform other competitive products greatly.

4. Light weight; flexible; anti-fatigue; great tensile strength; simple structure; environment friendly; non-poisonous and recyclable; easy for transportation and installation; no deformation after long-time service.

5.Stainless steel wire rope mesh has better shape plasticity (adaptation) and can be deployed in designs of more shapes.

Installation：

The installation of the stainless steel cable mesh is much easier than you might expect and requires only a minimum of tools.

The flexible metal netting panel arrives in front of you in precise dimensions. Only need to follow the installation instructions and use a wire rope to firmly wrap the edge of the mesh onto the frame or support structure to tighten the mesh.

In the case of large structures (such as zoo enclosures), matching frames and meshes in order and according to actual conditions is the key to success. Ensure that the mesh has a uniform focus so that the correct tension to maintain the overall structure is safe, beautiful, and durable.

All in all, the precise custom mesh size makes the installation work simple and effective, avoiding the problems that need to be cropped. The bigger the project, the more you can save on your expenses.

We provide the regular specifications for your referenc:

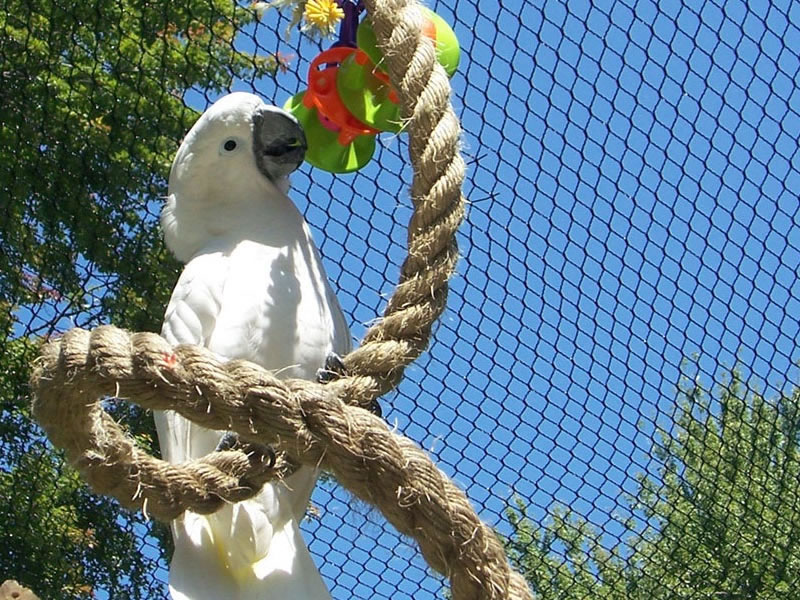

Applications:

It is widely used for animal enclosure fence in zoological gardens, zoo mesh, animals enclousre fence, enclosure fence mesh, bird netting, aviary mesh panels, deer enclosure fencing mesh, animals barrier, etc.
