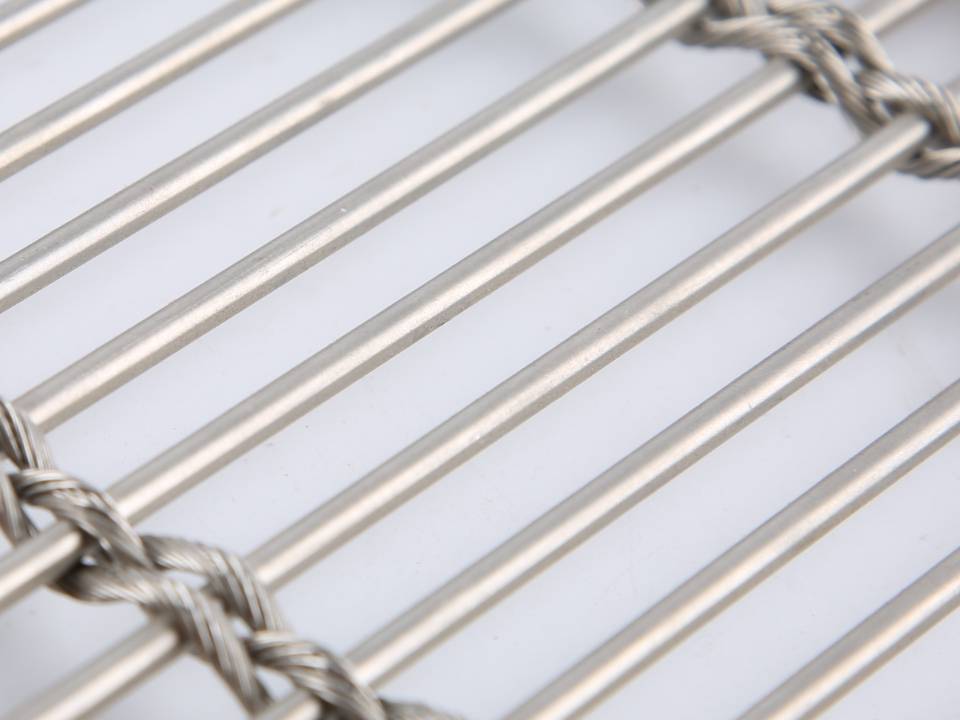

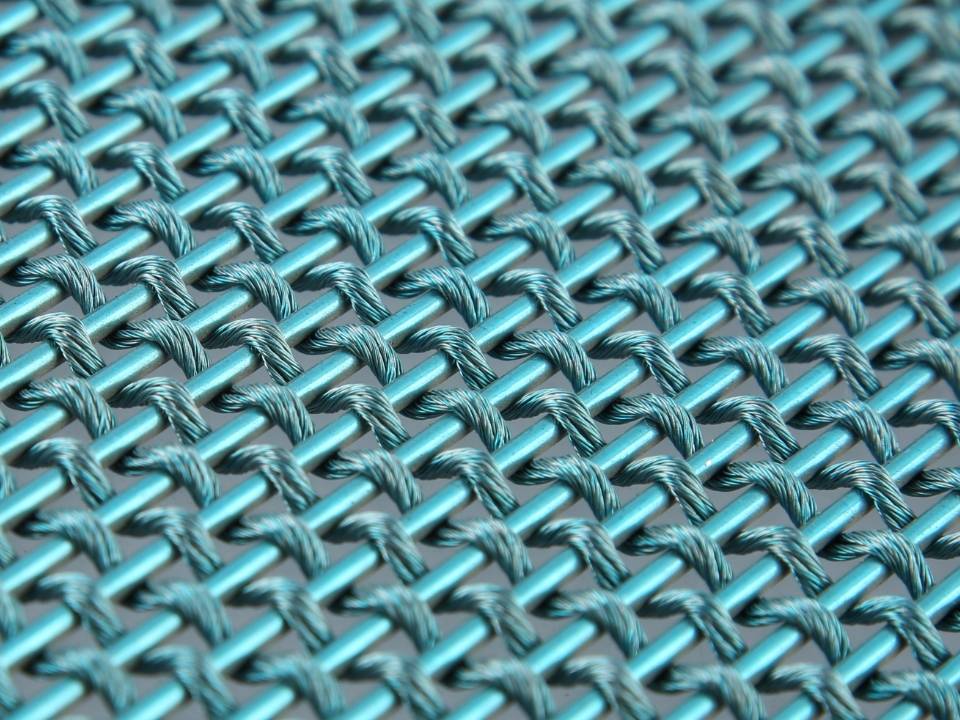

Woven Wire Drapery - JD104

Woven Wire Drapery also called Architectural Woven Drapery. The mesh woven from different material, such as stainless steel, brass, copper, etc. It has strong durability, good corrosion resistance, and excellent flexibility, it is competent for interior and exterior ornamentation. For interior, it can be used as room dividers, decorative curtains and ceiling curtains. For exterior, it is an ideal option for building facade, column cladding, and wall coverings. It is also a good choice of protective application for stairs, elevator cabs, rails and balustrades due to its narrow space between two neighboring rods.

Specifications:

Material: stainless steel 304 316 etc.
Rod wire diameter (a): 1.2 - 3.0mm
Rope diameter (b): 1.5 - 2.7mmx1
Rod wire pitch (c): 2.5 - 8.4mm
Rope pitch (d): 1.55 - 11.5mm
Cross rod type: straight
Overall thickness: 4.6 - 8.4mm
Open area: 31- 60%
Weight: 5.1 - 14kg/m2
Max Width: 4m
Max Length: 15m
Surface treatment: Pickling and Electrolytic Polishing, Antique brass surface finished, Spraying plated surface finished, PVD color surface finished.
Wire Mesh Colors: natural colors, bronze, antique brass and brass
Note: Special size and specifications can be made according to customers requires.

Features:

Never rust.
No or little maintain.
High durability and flexibility.
Beautiful appearance and various color option
Woven Wire Fabric used as facade, not only play a role in decoration, also can use opening area of architectural metal mesh to block part of the sun.

Application:

Woven wire drapery is a very famous architectural mesh. It is competent for interior and exterior ornamentation. For interior, it can be used as room dividers, decorative curtains and ceiling curtains. For exterior application, it is an ideal alternative for building facade, column cladding, wall coverings. Due to its narrow space between two neighboring wires, it is a superior choice of protective device for stairs, elevator cabs, rails and balustrades.
